MML-UA-120

High-Throughput Model
MML-UA-120

Urine
Analyzer

High-speed fully automated urine chemistry analyzer with advanced photoelectric colorimetry and intelligent automation — designed for large labs & high-volume diagnostics.

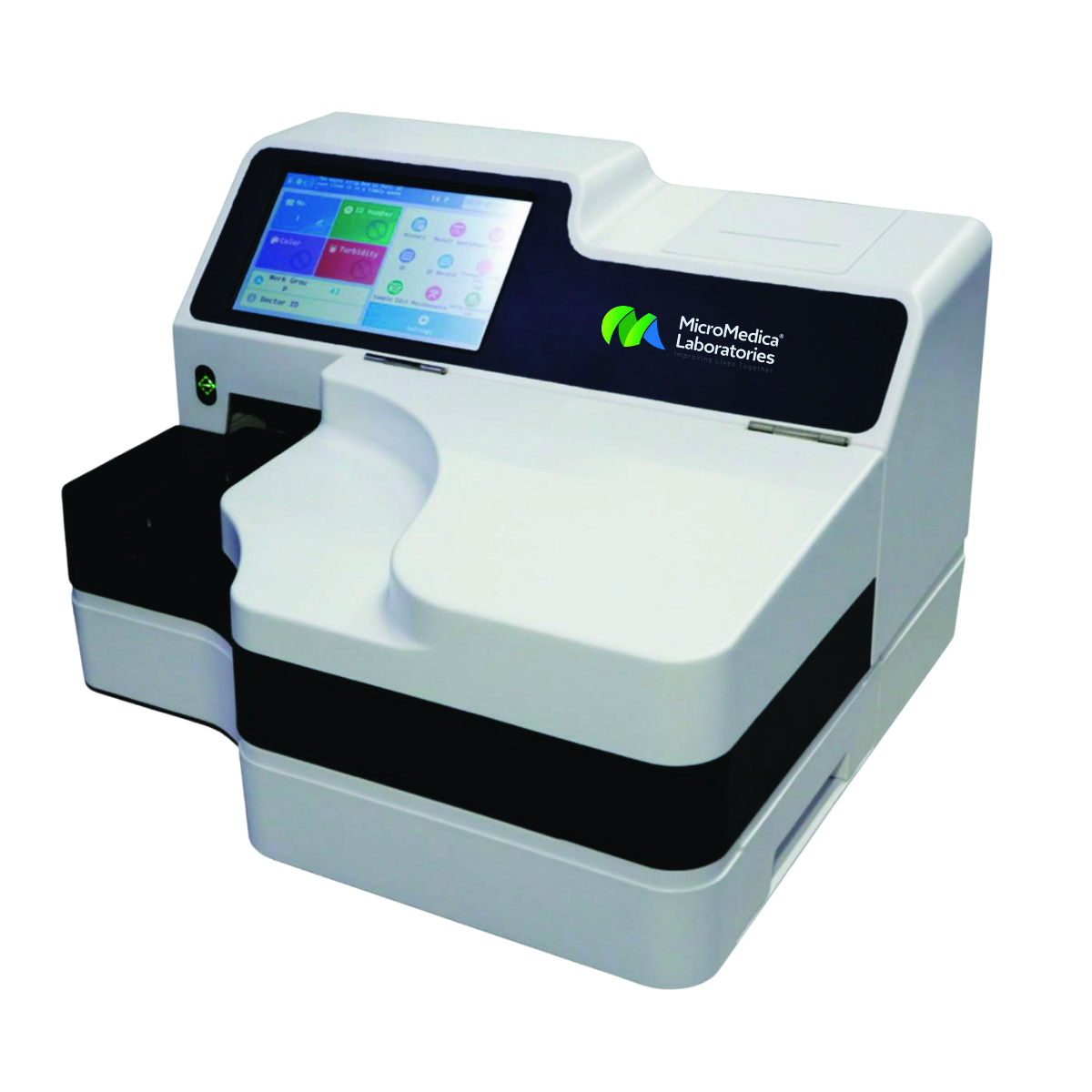

MML-UA-120 Urine Analyzer
600
Tests / Hour
14
Parameters
10,000
Result Storage
Key Features
  • Ultra-high throughput: up to 600 tests/hour
  • Photoelectric colorimetry for precise detection Advanced
  • 7-inch color touch screen with improved user interaction
  • Built-in thermal printer — instant report printing
  • Smart strip handling system — prevents tilting & ensures accuracy
  • Automatic calibration system — reduces errors
  • Stores 10,000 sample results + 3,000 QC data
  • Multi-language: EN, CN, RU, ES, PL, TR, IT, PT
  • Integrated waste management — built-in waste bin
Test Parameters
Supported Urine Chemistry Parameters
UBG BIL KET BLD PRO NIT LEU GLU pH SG Cr Ca VC (optional) MALB (optional)
Technical Specifications
📋 Specifications
Display
7-inch color touch screen
Throughput
600 tests/hour
Principle
Photoelectric Colorimetry
Wavelengths
525nm, 572nm, 610nm, 660nm
Storage
10,000 sample data + 3,000 QC data
Suitable Strips
H2-Cr, H10-II, H11-II, H11-MA(N), H11-MA, H12-MA, H13-Cr, H14-Ca
Waste Bin
190–250 strips
Interface
RS-232 port
Languages
EN, CN, RU, ES, PL, TR, IT, PT
Power Supply
~220V, 50Hz
Power Consumption
40VA
Dimensions
404 × 356 × 264 mm
Weight
8 kg
Printer
Built-in thermal printer
Operating Temp
5°C – 40°C
Humidity
≤ 80%
Performance Highlights
  • Intelligent strip detection with indicator light for faster operation
  • Advanced test head captures more accurate color data
  • Automatic correction for pH, hemoglobin & abnormal sample color
  • 14 dry chemistry parameters + calculated ACR & PCR
  • Seamless LIS integration for comprehensive diagnostic reporting
Applications
🏥 Ideal For
Diagnostic Laboratories Hospitals & Multi-specialty Centers High-volume Pathology Labs Research Institutions Centralized Testing Facilities
★ Why Choose MML-UA-120
  • Extremely fast and efficient workflow
  • High accuracy with intelligent automation
  • Reduced manual intervention and errors
  • Suitable for large-scale diagnostic operations
  • Advanced features for modern laboratory needs
MML-UA-120 Urine Analyzer
📥 Download Product Catalogue
Product Catalogue
